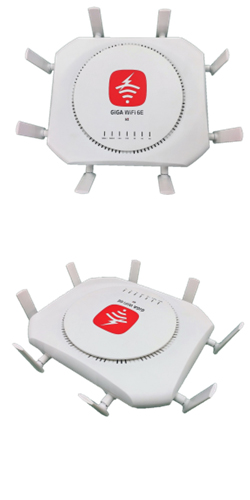

WiFi 6e AP
| Specifications | WiFi 6e | |
|---|---|---|
| CPU | IPQ 8074A 2.2GHz Quad-core CPU |
|
| FLASH/RAM | 256/1024 Mbytes |
|
| Frequency | 2.4~2.4835GHz (Ch:1~13) 5.15~5.835GHz (24EA CH) 5.925~7.125GHz (56EA CH) 20/40/80/80+80/160MHz channel Bonding |
|
| Wireless Spec | 802.11 a/b/g/n/ac/ax (6e) | |
| Electricity [MAX] | 34W | |
| Transmit Power | SISO: 17 dBm, MIMO: 23 dBm |
|
| Input Power | DC 12V/5A Adapter | |
| ANTENNA | 4*4 per band | |
| Size(W*H*D) | 290*245*67 mm | |
| Max connection | 512 Users per 2.4/5/6GHz | |
| Multiple SSID | 16 per band | |
| Max Bandwidth | 4.8 Gbps | |
| Features | 1024 QAM Modulation, DL/UL MU-MIMO, DL/UL OFDMA, BSS Coloring, WP3 support | |
