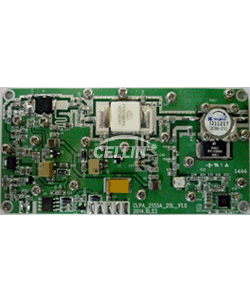

CL-KSEM2R1G35-0065
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KSEM2R1G35-0065 |
LDMOS |
|
| Frequency Band | 2150 ~ 2170 MHz |
LTE10MHz+WCDMA2FA / FDD |
|
| Gain | 35 ±1dB |
||
| Output Power | 3W |
||
| ACLR | ±20MHz | Min 48dBc |
RBW 100KHz |
| ±40MHz | |||
| DC Current | 29V/1.5A, 6V/0.2A |
||
| Dimension | 45*90*13 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
