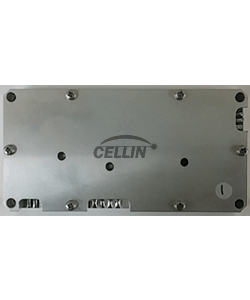

CL-TWPM2R1G35-0074
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-TWPM2R1G35-0074 |
LDMOS |
|
| Frequency Band | 2150 ~ 2170 MHz |
WCDMA / FDD |
|
| Gain | 35±0.5dB |
||
| Output Power | 3W |
||
| ACLR | ±20MHz | Min 45dBc |
RBW 100KHz |
| ±40MHz | Min 45dBc |
||
| DC Current | 29V/1.3A |
||
| Dimension | 45*90*13 |
W*D*H (mm) |
|
| Operation Temperature | -10℃ to +60 ℃ |
||
