Product WiFi

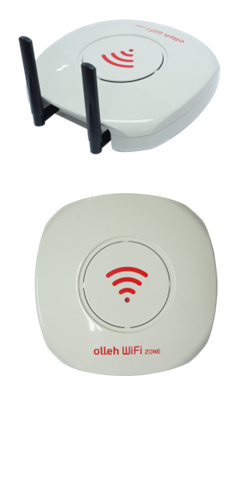

WiFi 4 AP
| Specifications | WiFi 4 | |
|---|---|---|
| CPU | MIPS24K 680MHz |
|
| FLASH/RAM | 16/128 Mbytes |
|
| Frequency | 2.4~2.4835GHz (Ch:1~13) 5.15~5.815GHz (19EA CH) 20/40+/40- MHz channel bandwidth |
|
| Wireless Spec | 802.11 a/b/g/n | |
| Electricity [MAX] | 26W | |
| Transmit Power | SISO: 23 dBm, MIMO: 23 dBm |
|
| Input Power | DC 12V/2.5A Adapter, or 802.3 at PoE | |
| ANTENNA | 2*2 | |
| Size(W*H*D) | 230*230*60 mm | |
| Max connection | 256 Users per 2.4/5GHz | |
| Multiple SSID | 12 per band | |
| Max Link Rate | 300 Mbps | |
| Features | MIMO, Frame Aggregation, Channel Bonding, Short GI | |
