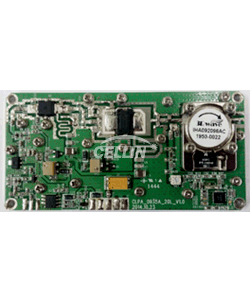

CL-KSEM0R9G35-0063
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KSEM0R9G35-0063 |
LDMOS |
|
| Frequency Band | 950 ~ 960 MHz |
LTE / FDD |
|
| Gain | 35 ±1dB |
||
| Output Power | 3W |
||
| ACLR | ±20MHz | Min 48dBc |
RBW 100KHz |
| ±40MHz | |||
| DC Current | 29V/1.3A, 6V/0.2A |
||
| Dimension | 45*90*13 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
