Product PAM

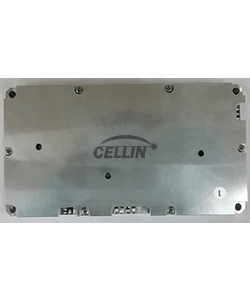

CL-TWPM1R8G38-0073
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-TWPM1R8G38-0073 |
LDMOS |
|
| Frequency Band | 1820~1830 MHz & 1850~1865 MHz |
LTE 10MHz 1FA + 15MHz 1FALTE 10MHz / FDD |
|
| Gain | 35±0.5dB |
||
| Output Power | 5W |
||
| ACLR | ±20MHz | Min 40dBc |
RBW 100KHz |
| ±40MHz | Min 40dBc |
||
| DC Current | 29V/2A |
||
| Dimension | 65*113*16 |
W*D*H (mm) |
|
| Operation Temperature | -10℃ to +60 ℃ |
||
