PRODUCT > Product HPA > CL-OF14W1R8G-0040
Product HPA

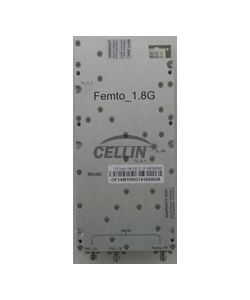

CL-OF14W1R8G-0040
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-OF14W1R8G-0040 | LDMOS |
|
| Frequency Band | 1830 ~ 1850 MHz | LTE / FDD | |
| Gain | 53.5±0.5dB | ||
| Output Power | 14W |
||
| ACLR | ±20MHz | Min 47dBc | RBW 100KHz |
| ±40MHz | Min 50dBc | ||
| DC Current | 29.4V/1.5A, 5.6V/1.5A | ||
| Dimension | 80*170*35 | W*D*H (mm) |
|
| Operation Temperature | -30℃ to +55 ℃ |
||
-
