Product HPA

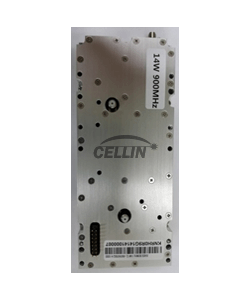

CL-KNRH0R9G14-0060
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KNRH0R9G14-0060 |
GaN |
|
| Frequency Band | 949.3 ~ 960 MHz |
LTE / FDD |
|
| Gain | 47±1dB |
||
| Output Power | 14W |
||
| ACLR | ±20MHz | Min 45dBc |
RBW 100KHz |
| ±40MHz | Min 45dBc |
||
| DC Current | 50.2V/2.9A, 5.6V/0.5A |
||
| Dimension | 70*160*24 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
