Product HPA

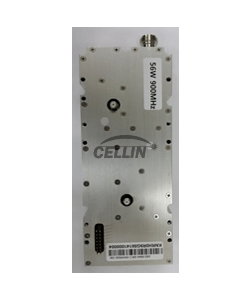

CL-KNRH0R9G56-0056
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KNRH0R9G56-0056 |
GaN |
|
| Frequency Band | 949.3 ~ 960 MHz |
LTE / FDD |
|
| Gain | 50±1dB |
||
| Output Power | 56W |
||
| ACLR | ±20MHz | Min 45dBc |
RBW 100KHz |
| ±40MHz | |||
| DC Current | 50.2V/2.9A, 5.6V/0.5A |
||
| Dimension | 70*175*42 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
