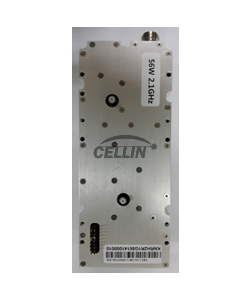

CL-KNRH2R1G56-0058
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KNRH2R1G56-0058 |
GaN |
|
| Frequency Band | 2150 ~ 2200 MHz |
WCDMA 4FA or LTE10M+WCDMA2FA / FDD |
|
| Gain | 53±1dB |
||
| Output Power | 56W |
||
| ACLR | ±20MHz | Min 47dBc | RBW 100KHz |
| ±40MHz | Min 50dBc | ||
| DC Current | 50.2V/2.9A, 5.6V/0.5A |
||
| Dimension | 70*175*42 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
