제품소개 > HPA 제품군 > CL-FRDP1R9G18-0077
HPA 제품군

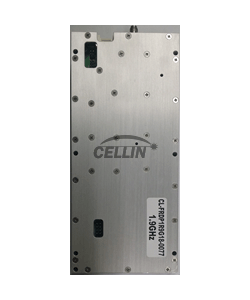

CL-FRDP1R9G18-0077
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-FRDP1R9G18-0077 |
|
|
| Frequency Band | 1930 ~ 1995 MHz |
US PCS |
|
| Gain | 57.5 ± 0.5dB |
||
| Output Power | 18W |
||
| ACLR | ±20MHz | Min 50dBc |
|
| ±40MHz | Min 50dBc |
||
| DC Current | 29V/3A |
||
| Dimension | 80x 180 x 35 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +60 ℃ |
||
