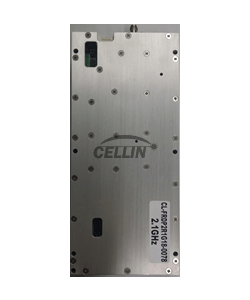

CL-FRDP2R1G18-0078
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-FRDP2R1G18-0078 |
|
|
| Frequency Band | 2110 ~ 2155 MHz |
AWS |
|
| Gain | 57.5 ± 0.5dB |
||
| Output Power | 18W |
||
| ACLR | ±20MHz | Min 50dBc |
|
| ±40MHz | Min 50dBc |
||
| DC Current | 29V/3A |
||
| Dimension | 80x 180 x 35 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +60 ℃ |
||
