제품소개 > HPA 제품군 > CL-KNRH2R3G56-0059
HPA 제품군

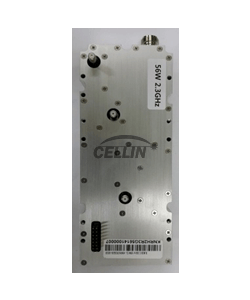

CL-KNRH2R3G56-0059
| Item | Specifications | Remark | |
|---|---|---|---|
| Model No | CL-KNRH2R3G56-0059 |
GaN |
|
| Frequency Band | 2330 ~ 2360 MHz |
LTE / TDD |
|
| Gain | 38 ± 1dB |
||
| Output Power | 56W |
||
| ACLR | ±20MHz | Min 47dBc |
RBW 100KHz |
| ±40MHz | Min 50dBc |
||
| DC Current | 50.2V/2.3A, 5.6V/0.5A |
||
| Dimension | 70*175*42 |
W*D*H (mm) |
|
| Operation Temperature | -30℃ to +70 ℃ |
||
